Solar batteries Neocase

suitable for all environments
Stationary or autonomous

Solar batteries NeoCase

suitable for all environments

Stationary or autonomous

Our range of stationary solar batteries

Neogy has developed a range of solar batteries that adapt quickly to your system, according to your needs. We support you in the choice of your solar batteries and in their integration.
NeoCase 84
Ni-MH 12 V battery
84 Wh
NeoCase 312
Ni-MH 24 V battery
312 Wh

Nouveauté

NeoCase 624
Ni-MH 24 V battery
up to 1248 Wh
with extension
Our range
Premium
Powered by Panasonic / Arts Energy
Fast charging
+ 70% lifespan
+ 3 years battery warranty
Better long-term profitability
NeoCase Premium 288
Ni-MH 24 V battery
288 Wh

Nouveauté

NeoCase Premium 576
Ni-MH 24 V battery
up to 1152 Wh
with extension
All our products are adaptable in LITHIUM-ION for temperate zones

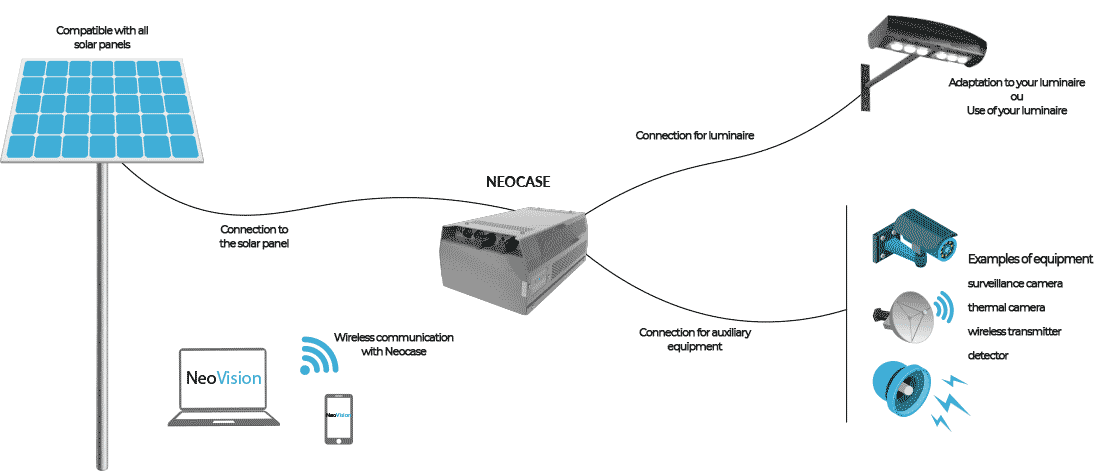

Simplified installation

Simplified installation

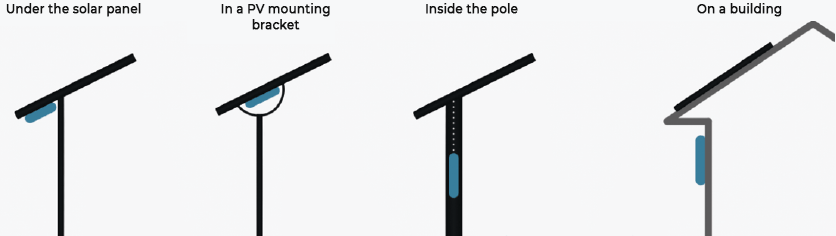

Adapted to your project

Adapted to your project

The heart of your system

A summary of technologies in our SLIM electronic card

The heart of your system

A summary of technologies in our SLIM electronic card

Digital MPPT

to optimize an input power up to 500 Wp from solar panels for a charging efficiency of up to 96%

BMS Ni-MH from BMS PowerSafe

for a secure battery and optimal life

LED driver and presence detectors

to control LED lights up to 120 Watts to reduce energy consumption with our lighting algorithms

Auxiliary output

to power your equipment with power up to 1300 Watts

Digital MPPT

to optimize an input power up to 500 Wp from solar panels for a charging efficiency of up to 96%

BMS Ni-MH from BMS PowerSafe

for a secure battery and optimal life

LED driver and presence detectors

to control LED lights up to 120 Watts to reduce energy consumption with our lighting algorithms

Auxiliary output

to power your equipment with power up to 1300 Watts

Supervision software

NeoVision

Real-time monitoring of system status
Voltage of solar panels and battery
Battery temperature
State of charge
System update

Recording of events

Changing parameters

Connectivity

to control your entire solar system

Connectivity

to control your entire solar system

Une connectivité

pour contrôler l’ensemble de votre système solaire

Supervision software

NeoVision

Real-time monitoring of system status
Voltage of solar panels and battery
Battery temperature
State of charge
System update

Recording of events

Changing parameters

Our proven technology

in more than 20 countries around the world

More than 10,000 SIM cards are installed in Africa

Our proven technology

in more than 20 countries around the world

More than 10,000 SIM cards are installed in Africa

Ni-MH technology

suitable for all environments

Ni-MH technology

suitable for all environments

Lithium-Ion technology

for temperate climates

Lithium-Ion technology

for temperate climates

Choice of technology according to the installation area

Choice of technology according to the installation area

Do you want to integrate our technology into your case?

Neogy offers you our NeoCase without the case for a minimum order of 100 pieces. Our engineers will accompany you for the integration of our technology in your case.

Which Neocase do you need?

NeoCase 84

BATTERY

Chimistery
Ni-MH

Fast charge
No

Onboard energy
84 Wh

Nominale voltage
12 Volts

Nominale capacity
7  Ah

Minimale capacity
6 Ah

Parallelizable
Yes

Battery life
5 ans

No. of cycles (DoD 80% / T 25°C-60°C)
2 000 cycles

ELECTRONIC

Card
SLIM+60

Electronics lifespan
10 ans

Solar panel input

Regulator
SPIR

Max input power
80 Wc

Nominale voltage
12 Volts

Open circuit voltage
< 22 Volts

Connectors
MC4

Exits

LED control
up to 60W

Auxiliary output
330W – 450W

Presence detection
1 detector

SeCURITy

Software protection
Overload
over discharge
Overheated

Material protection
Self-resetting fuse
Internal fuse 25A

Norms and compliance
THIS
EMC

GeNeRAL

Dimensions
243x208x123

Weight
3.5 kg

Battery tightness
IP66

Electronic sealing
IP67

Casing
Aluminium

Warranty / SAV

Spare parts supplies
Yes

Battery warranty
2 years

Electronics warranty
5 years

NeoCase 312

BATTERY

Chimistery
Ni-MH

Fast charge
No

Onboard energy
312 Wh

Nominale voltage
24 Volts

Nominale capacity
13  Ah

Minimale capacity
11 Ah

Parallelizable
Yes

Battery life
5 ans

No. of cycles (DoD 80% / T 25°C-60°C)
2 000 cycles

ELECTRONIC

Card
SLIM+60

Electronics lifespan
10 ans

Solar panel input

Regulator
SPIR

Max input power
160 Wc

Nominale voltage
24 Volts

Open circuit voltage
< 44 Volts

Connectors
MC4

Exits

LED control
up to 60W

Auxiliary output
330W – 450W

Presence detection
1 detector

SeCURITy

Software protection
Overload
over discharge
Overheated

Material protection
Self-resetting fuse
Internal fuse 25A

Norms and compliance
THIS
EMC

GeNeRAL

Dimensions
356x250x127

Weight
6.4 kg

Battery tightness
IP66

Electronic sealing
IP67

Casing
Aluminium

Warranty / SAV

Spare parts supplies
Yes

Battery warranty
2 years

Electronics warranty
5 years

NeoCase 624

BATTERY

Chimistery
Ni-MH

Fast charge
No

Onboard energy
up to 1248 Wh

Nominale voltage
24 Volts

Nominale capacity
up to 26 Ah

Minimale capacity
jusqu’à 22 Ah

Parallelizable
Yes

Battery life
5 ans

No. of cycles (DoD 80% / T 25°C-60°C)
2 000 cycles

ELECTRONIC

Card
SLIM+120

Electronics lifespan
10 ans

Solar panel input

Regulator
MPPT Numérique

Max input power
500 Wc

Nominale voltage
24 Volts

Open circuit voltage
< 44 Volts

Connectors
MC4

Exits

LED control
up to 120W

Auxiliary output
1100W – 1300W

Presence detection
2 detecteurs

SeCURITy

Software protection
Overload
over discharge
Overheated

Material protection
Self-resetting fuse
Internal fuse 25A

Norms and compliance
THIS
EMC

GeNeRAL

Dimensions
243x212x142

Weight
15 kg

Battery tightness
IP66

Electronic sealing
IP67

Casing
Aluminium

Warranty / SAV

Spare parts supplies
Yes

Battery warranty
2 years

Electronics warranty
5 years

NeoCase 288
Premium

YesBATTERY

Chimistery
Ni-MH Premium

Fast charge
Yes

Onboard energy
288 Wh

Nominale voltage
24 Volts

Nominale capacity
12 Ah

Minimale capacity
11 Ah

Parallelizable
Yes

Battery life
10 years

No. of cycles (DoD 80% / T 25°C-60°C)
4 000 cycles

ELECTRONIC

Card
SLIM+60

Electronics lifespan
10 ans

Solar panel input

Regulator
SPIR

Max input power
160 Wc

Nominale voltage
24 Volts

Open circuit voltage
< 44 Volts

Connectors
MC4

Exits

LED control
up to 60W

Auxiliary output
330W – 450W

Presence detection
1 detector

SeCURITy

Software protection
Overload
over discharge
Overheated

Material protection
Self-resetting fuse
Internal fuse 25A

Norms and compliance
THIS
EMC

GeNeRAL

Dimensions
356x250x127

Weight
6.4 kg

Battery tightness
IP66

Electronic sealing
IP67

Casing
Aluminium

Warranty / SAV

Spare parts supplies
Yes

Battery warranty
5 years

Electronics warranty
5 years

NeoCase 576
Premium

BATTERY

Chimistery
Ni-MH Premium

Fast charge
Yes

Onboard energy
up to 1152 Wh

Nominale voltage
24 Volts

Nominale capacity
up to 24 Ah

Minimale capacity
jusqu’à 22 Ah

Parallelizable
Yes

Battery life
10 years

No. of cycles (DoD 80% / T 25°C-60°C)
4 000 cycles

ELECTRONIC

Card
SLIM+120

Electronics lifespan
10 ans

Solar panel input

Regulator
MPPT Numérique

Max input power
500 Wc

Nominale voltage
24 Volts

Open circuit voltage
< 44 Volts

Connectors
MC4

Exits

LED control
up to 120W

Auxiliary output
1100W – 1300W

Presence detection
2 detectors

SeCURITy

Software protection
Overload
over discharge
Overheated

Material protection
Self-resetting fuse
Internal fuse 25A

Norms and compliance
THIS
EMC

GeNeRAL

Dimensions
343x212x142

Weight
15 kg

Battery tightness
IP66

Electronic sealing
IP54

Casing
Aluminium

Warranty / SAV

Spare parts supplies
Yes

Battery warranty
5 years

Electronics warranty
5 years

Which NeoCase do you need?

NeoCase 84

BATTERY

Chimistery
Ni-MH

Fast charge
No

Onboard energy
84 Wh

Nominale voltage
12 Volts

Nominale capacity
7  Ah

Minimale capacity
6 Ah

Parallelizable
Yes

Battery life
5 ans

No. of cycles (DoD 80% / T 25°C-60°C)
2 000 cycles

ELECTRONIC

Card
SLIM+60

Electronics lifespan
10 ans

Solar panel input

Regulator
SPIR

Max input power
80 Wc

Nominale voltage
12 Volts

Open circuit voltage
< 22 Volts

Connectors
MC4

Exits

LED control
up to 60W

Auxiliary output
330W – 450W

Presence detection
1 detector

SeCURITy

Software protection
Overload
over discharge
Overheated

Material protection
Self-resetting fuse
Internal fuse 25A

Norms and compliance
THIS
EMC

GeNeRAL

Dimensions
243x208x123

Weight
3.5 kg

Battery tightness
IP66

Electronic sealing
IP67

Casing
Aluminium

Warranty / SAV

Spare parts supplies
Yes

Battery warranty
2 years

Electronics warranty
5 years

NeoCase 312

BATTERY

Chimistery
Ni-MH

Fast charge
No

Onboard energy
312 Wh

Nominale voltage
24 Volts

Nominale capacity
13  Ah

Minimale capacity
11 Ah

Parallelizable
Yes

Battery life
5 ans

No. of cycles (DoD 80% / T 25°C-60°C)
2 000 cycles

ELECTRONIC

Card
SLIM+60

Electronics lifespan
10 ans

Solar panel input

Regulator
SPIR

Max input power
160 Wc

Nominale voltage
24 Volts

Open circuit voltage
< 44 Volts

Connectors
MC4

Exits

LED control
up to 60W

Auxiliary output
330W – 450W

Presence detection
1 detector

SeCURITy

Software protection
Overload
over discharge
Overheated

Material protection
Self-resetting fuse
Internal fuse 25A

Norms and compliance
THIS
EMC

GeNeRAL

Dimensions
356x250x127

Weight
6.4 kg

Battery tightness
IP66

Electronic sealing
IP67

Casing
Aluminium

Warranty / SAV

Spare parts supplies
Yes

Battery warranty
2 years

Electronics warranty
5 years

NeoCase 624

BATTERY

Chimistery
Ni-MH

Fast charge
No

Onboard energy
up to 1248 Wh

Nominale voltage
24 Volts

Nominale capacity
up to 26 Ah

Minimale capacity
jusqu’à 22 Ah

Parallelizable
Yes

Battery life
5 ans

No. of cycles (DoD 80% / T 25°C-60°C)
2 000 cycles

ELECTRONIC

Card
SLIM+120

Electronics lifespan
10 ans

Solar panel input

Regulator
MPPT Numérique

Max input power
500 Wc

Nominale voltage
24 Volts

Open circuit voltage
< 44 Volts

Connectors
MC4

Exits

LED control
up to 120W

Auxiliary output
1100W – 1300W

Presence detection
2 detecteurs

SeCURITy

Software protection
Overload
over discharge
Overheated

Material protection
Self-resetting fuse
Internal fuse 25A

Norms and compliance
THIS
EMC

GeNeRAL

Dimensions
243x212x142

Weight
15 kg

Battery tightness
IP66

Electronic sealing
IP67

Casing
Aluminium

Warranty / SAV

Spare parts supplies
Yes

Battery warranty
2 years

Electronics warranty
5 years

NeoCase 288
Premium

YesBATTERY

Chimistery
Ni-MH Premium

Fast charge
Yes

Onboard energy
288 Wh

Nominale voltage
24 Volts

Nominale capacity
12 Ah

Minimale capacity
11 Ah

Parallelizable
Yes

Battery life
10 years

No. of cycles (DoD 80% / T 25°C-60°C)
4 000 cycles

ELECTRONIC

Card
SLIM+60

Electronics lifespan
10 ans

Solar panel input

Regulator
SPIR

Max input power
160 Wc

Nominale voltage
24 Volts

Open circuit voltage
< 44 Volts

Connectors
MC4

Exits

LED control
up to 60W

Auxiliary output
330W – 450W

Presence detection
1 detector

SeCURITy

Software protection
Overload
over discharge
Overheated

Material protection
Self-resetting fuse
Internal fuse 25A

Norms and compliance
THIS
EMC

GeNeRAL

Dimensions
356x250x127

Weight
6.4 kg

Battery tightness
IP66

Electronic sealing
IP67

Casing
Aluminium

Warranty / SAV

Spare parts supplies
Yes

Battery warranty
5 years

Electronics warranty
5 years

NeoCase 576
Premium

BATTERY

Chimistery
Ni-MH Premium

Fast charge
Yes

Onboard energy
up to 1152 Wh

Nominale voltage
24 Volts

Nominale capacity
up to 24 Ah

Minimale capacity
jusqu’à 22 Ah

Parallelizable
Yes

Battery life
10 years

No. of cycles (DoD 80% / T 25°C-60°C)
4 000 cycles

ELECTRONIC

Card
SLIM+120

Electronics lifespan
10 ans

Solar panel input

Regulator
MPPT Numérique

Max input power
500 Wc

Nominale voltage
24 Volts

Open circuit voltage
< 44 Volts

Connectors
MC4

Exits

LED control
up to 120W

Auxiliary output
1100W – 1300W

Presence detection
2 detectors

SeCURITy

Software protection
Overload
over discharge
Overheated

Material protection
Self-resetting fuse
Internal fuse 25A

Norms and compliance
THIS
EMC

GeNeRAL

Dimensions
343x212x142

Weight
15 kg

Battery tightness
IP66

Electronic sealing
IP54

Casing
Aluminium

Warranty / SAV

Spare parts supplies
Yes

Battery warranty
5 years

Electronics warranty
5 years

Develop your custom solar battery

Ni-MH & Li-ion technology
From several Wh to a few KWh

Do you want to order a NeoCase?

Contact us
